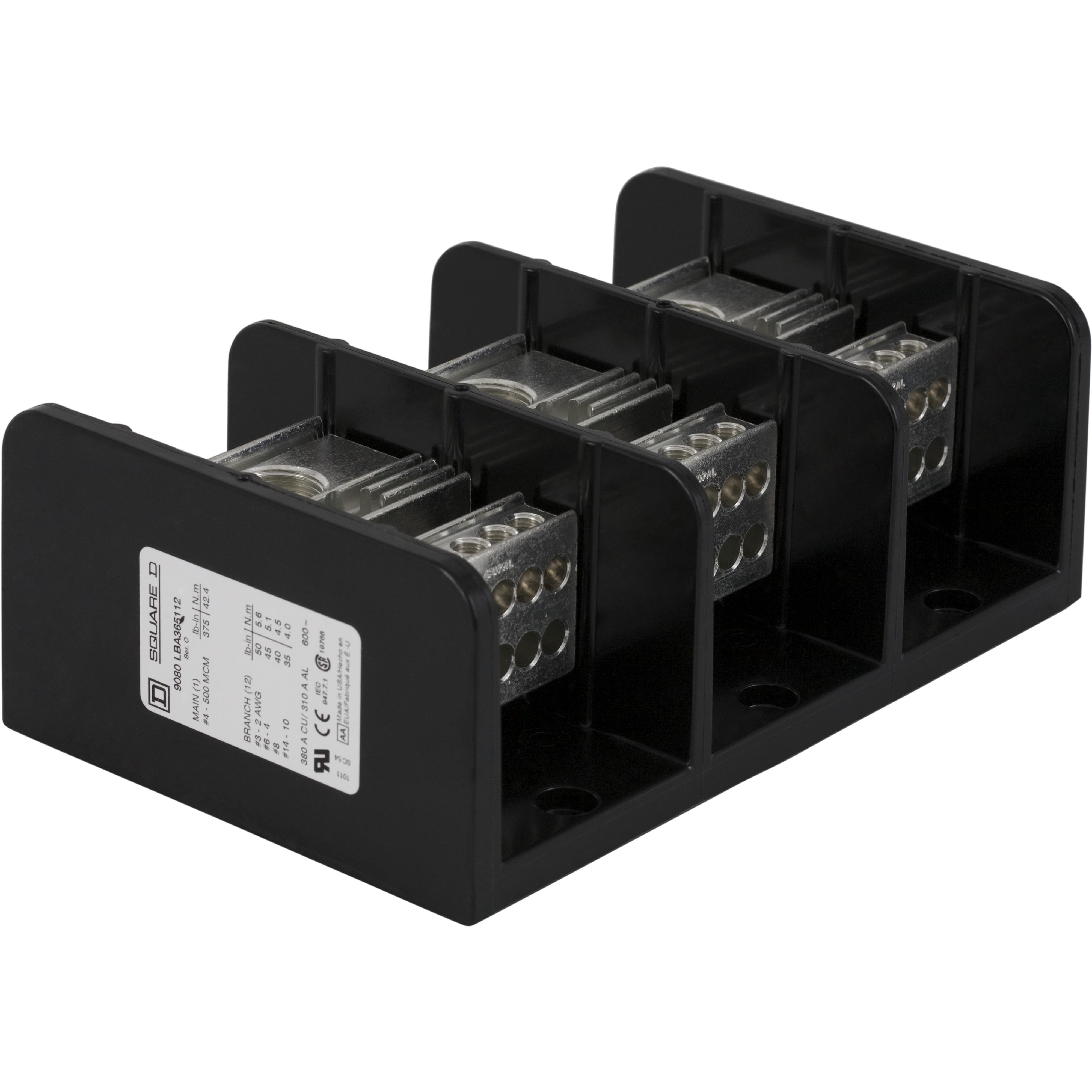

Square D TeSys® Linergy 9080LBA365112 Linergy Standard Multi-Pole Power Distribution Block, 600 VAC/VDC, 310/380 A, 3 Poles, 4 AWG to 500 kcmil, 14 to 2 AWG Wire, Phenolic

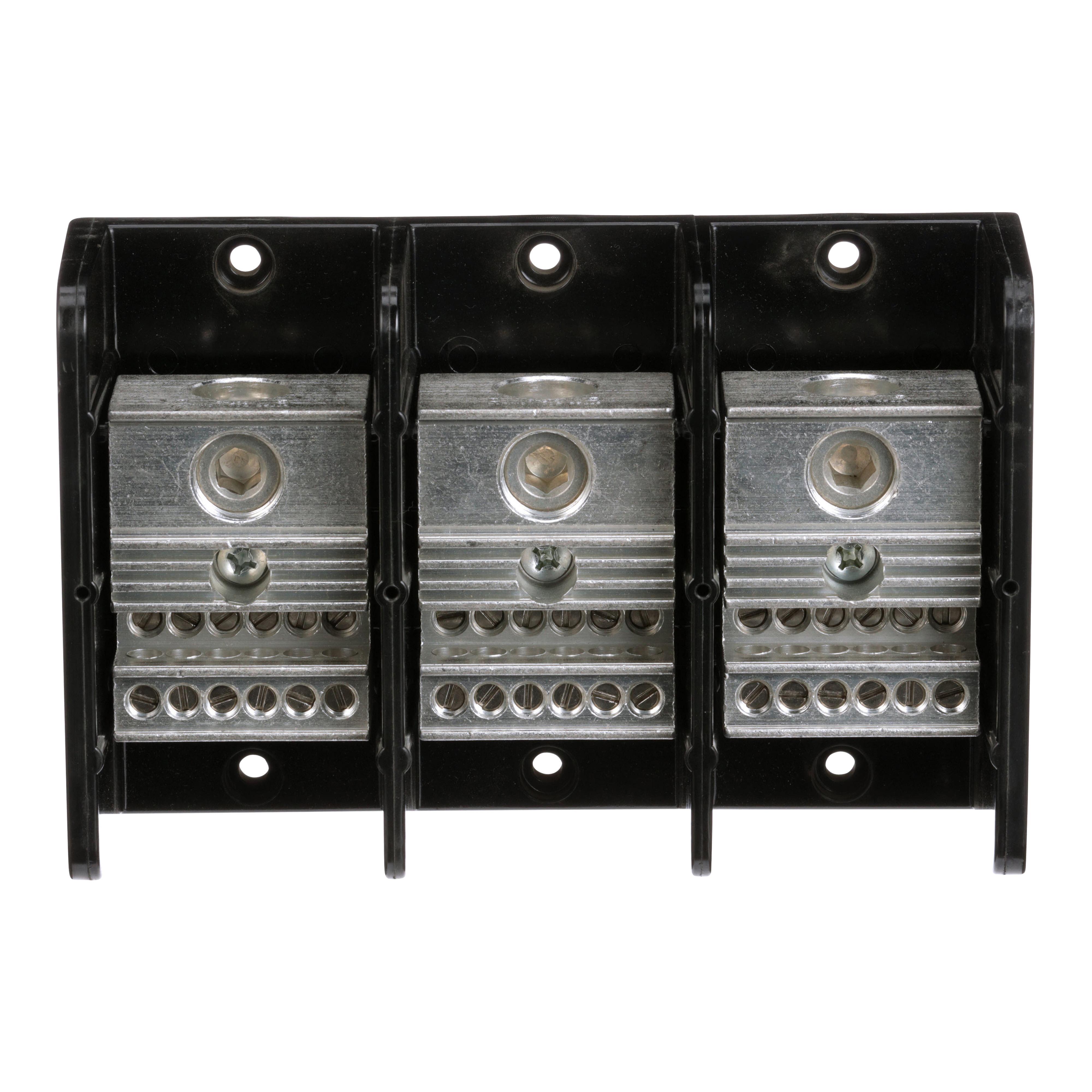

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has one lug opening on the line (main) side and twelve lug openings on the load (branch) side. The line side lug is rated to accept one 4 to 500 kcmil copper or aluminum wire. The load side lug is rated to accept one 14 to 2 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 380 amperes with copper wire and 310 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.

PWR DIST BLOCK 3P 1-#4-500
